Aluminum elbows

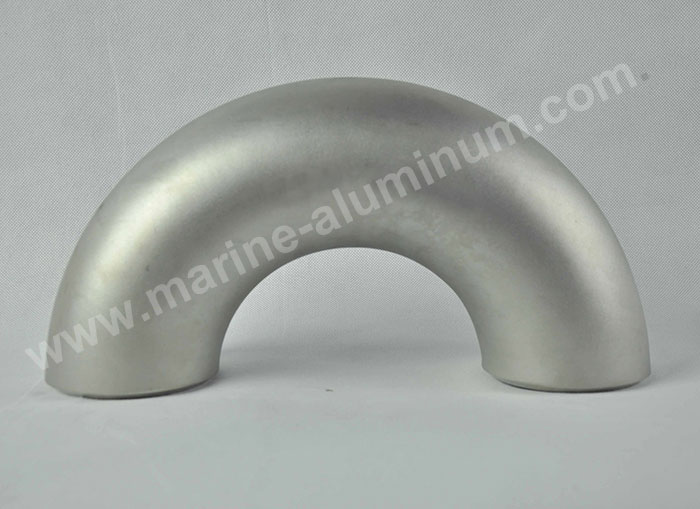

Long radius aluminum 180 degree elbow
We offer stock for different aluminum fittings, 5086H32 & 6061T6 Aluminum Pipe Fittings,aluminum elbow (Radius 90’s, Long Radius 45’s, Long Radius 180’s, Short Radius 90’s, Short Radius 180’s), Tees (Straight and Reducing) Tees and Crosses (Straight and Reducing), Aluminum Caps,Aluminum couplings(straight and reducing), aluminum flanges. We also offer custom manufactured fittings, flanges and pipes.

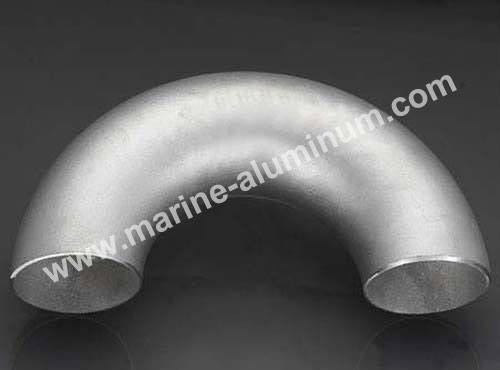

aluminum 180 degree elbow

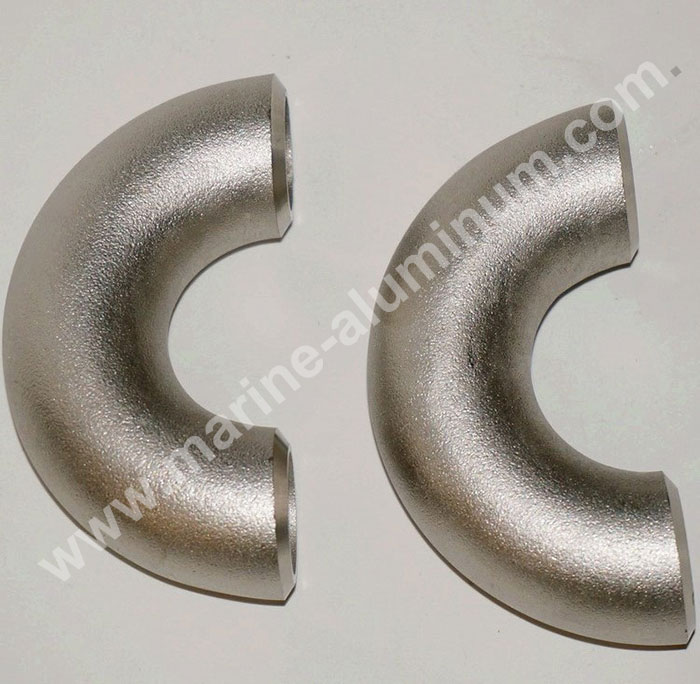

aluminum elbows


5086 H32
5086 is the preferred hull material for small aluminium boats or larger yachts. Its high strength and good corrosion resistance make it an excellent match for yachting.
5086 has a tendency to undergo stress corrosion cracking and is not used much in aircraft construction as a result.
5086 has been used in vehicle armor, notably in the M113 Armored Personnel Carrier and M2 Bradley Infantry fighting vehicle.

6061-T6
T6 temper 6061 has an ultimate tensile strength of at least 42,000 psi (300 MPa) and yield strength of at least 35,000 psi (241 MPa).  More typical values are 45,000 psi (310 MPa) and 40,000 psi (275 MPa), respectively. In thicknesses of 0.250 inch (6.35 mm) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The typical value for thermal conductivity for 6061-T6 at 80°C is around 152 W/m K. A material data sheet defines the fatigue limit under cyclic load as 14,000 psi (100 MPa) for 500,000,000 completely reversed cycles using a standard RR Moore test machine and specimen. Note that aluminum does not exhibit a well defined “knee” on its S-n graph, so there is some debate as to how many cycles equates to “infinite life”. Also note the actual value of fatigue limit for an application can be dramatically affected by the conventional de-rating factors of loading, gradient, and surface finish.
aluminium elbow

aluminium elbow

aluminum elbows

aluminum elbows

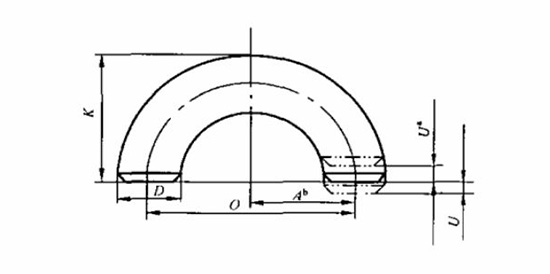

Nominal Dimension
DN
Bevel    D Center to Center       O
I Series
Bottom to Top  K
I Series Ⅱ Series I Series Ⅱ Series
15 21.3 18 76 48 47
20 26.9 25 76 51 51
25 33.7 32 76 56 54
32 42.4 38 95 70 67
40 48.3 45 114 83 80
50 60.3 57 152 106 105
65 73.0 76 190 132 133
80 88.9 89 229 159 159
90 101.6   267 184
100 114.3 108 305 210 206
125 141.3 133 381 262 257
150 168.3 159 457 313 308
200 219.1 219 610 414 414
250 273.0 273 762 518 518
300 323.9 325 914 619 620
350 355.6 377 1067 711 722
400 406.4 426 1219 813 823
450 457 480 1372 914 925
500 508 530 1524 1016 1026
550 559   1676 1118
600 610 630 1829 1219 1229
