Aluminum elbows

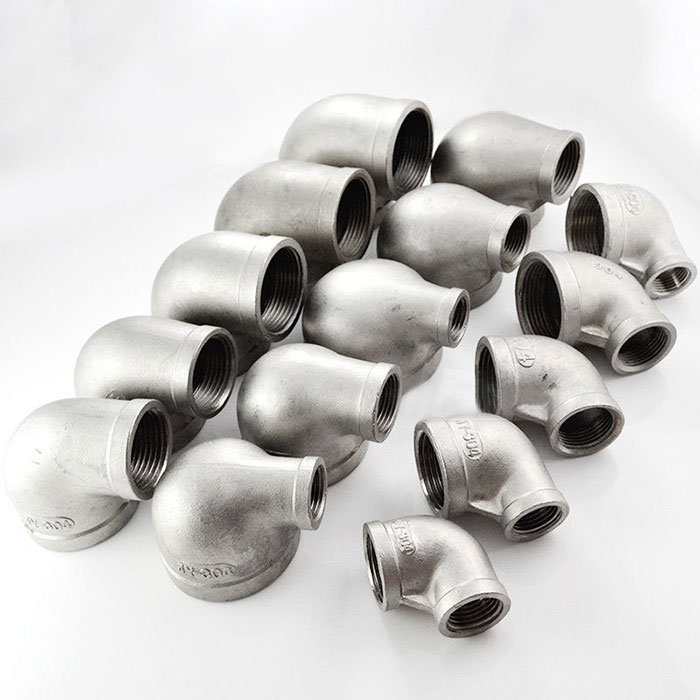

Long radius reducing aluminum 90 degree elbow

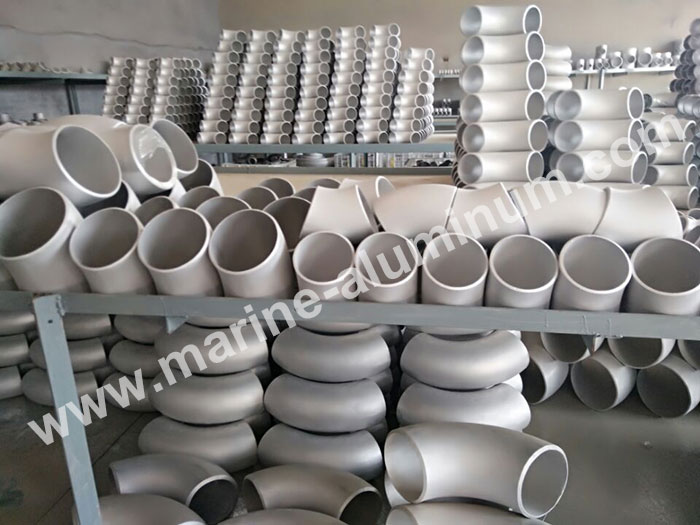

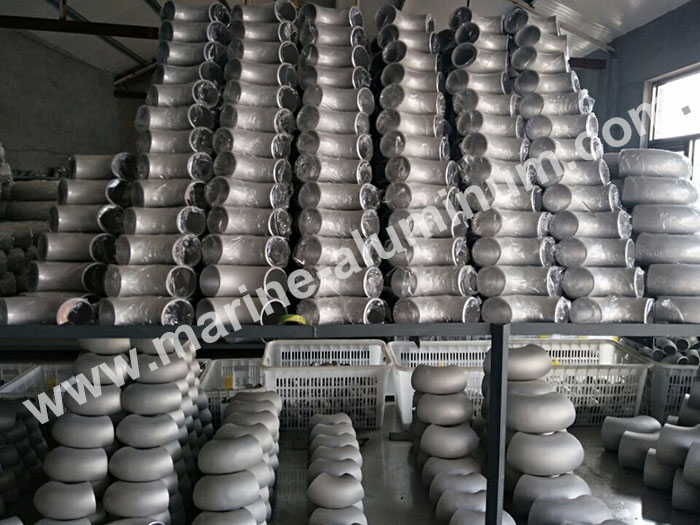

We offer stock for different aluminum fittings, 5086H32 & 6061 T6 Aluminum Pipe Fittings,aluminum elbow (Radius 90’s, Long Radius 45’s, Long Radius 180’s, Short Radius 90’s, Short Radius 180’s), Tees (Straight and Reducing) Tees and Crosses (Straight and Reducing), Aluminum Caps,Aluminum couplings(straight and reducing), aluminum flanges. We also offer custom manufactured fittings, flanges and pipes.

aluminum elbows


aluminium elbow

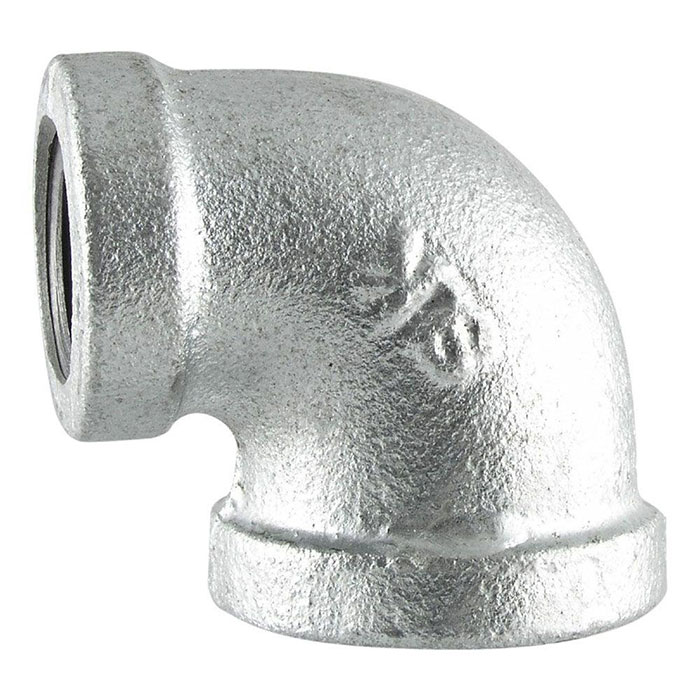

reducing aluminum elbows
5086 H32
5086 is the preferred hull material for small aluminium boats or larger yachts. Its high strength and good corrosion resistance make it an excellent match for yachting.
5086 has a tendency to undergo stress corrosion cracking and is not used much in aircraft construction as a result.
5086 has been used in vehicle armor, notably in the M113 Armored Personnel Carrier and M2 Bradley Infantry fighting vehicle.

6061-T6
T6 temper 6061 has an ultimate tensile strength of at least 42,000 psi (300 MPa) and yield strength of at least 35,000 psi (241 MPa).  More typical values are 45,000 psi (310 MPa) and 40,000 psi (275 MPa), respectively. In thicknesses of 0.250 inch (6.35 mm) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The typical value for thermal conductivity for 6061-T6 at 80°C is around 152 W/m K. A material data sheet defines the fatigue limit under cyclic load as 14,000 psi (100 MPa) for 500,000,000 completely reversed cycles using a standard RR Moore test machine and specimen. Note that aluminum does not exhibit a well defined “knee” on its S-n graph, so there is some debate as to how many cycles equates to “infinite life”. Also note the actual value of fatigue limit for an application can be dramatically affected by the conventional de-rating factors of loading, gradient, and surface finish.


aluminum 90 degree elbow

reducing aluminium elbow



aluminium elbow

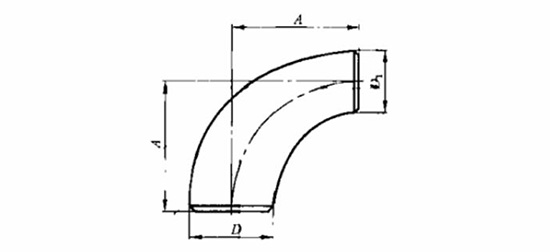

Nominal Dimension
DN
D D1 center to end      A
I Series Ⅱ Series I Series Ⅱ Series
50×40 60.3 57 48.2 45 76
50×32 60.3 57 42.4 38 76
50×25 60.3 57 33.7 32 76
65×50 73.0 76 60.3 57 95
65×40 73.0 76 48.3 45 95
65×32 73.0 76 42.4 38 95
80×65 88.9 89 73.0 76 114
80×50 88.9 89 60.3 57 114
80×40 88.9 89 48.3 45 114
90×80 101.6   88.9   133
90×65 101.6   73.0   133
90×50 101.6   60.3   133
100×90 114.3 108 101.6   152
100×80 114.3 108 88.9 89 152
100×65 114.3 108 73.0 76 152
100×50 114.3 108 60.3 57 152
125×100 141.3 133 114.3 108 190
125×90 141.3   101.6   190
125×80 141.3 133 88.9 89 190
125×65 141.3 133 73.0 76 190
150×125 168.3 159 141.3 133 229
150×100 168.3 159 114.3 108 229
150×90 168.3   101.6   229
150×80 168.3 159 88.9 89 229
200×150 219.1 219 168.3 159 305
200×125 219.1 219 141.3 133 305
200×100 219.1 219 114.3 108 305
250×200 273.0 273 219.1 219 381
250×150 273.0 273 168.3 159 381
250×125 273.0 273 141.3 133 381
300×250 323.9 325 273.0 273 457
300×200 323.9 325 219.1 219 457
300×150 323.9 325 168.3 159 457
350×300 355.6 377 323.9 325 533
350×250 355.6 377 273.0 273 533
350×200 355.6 377 219.1 219 533
400×350 406.4 426 355.6 377 610
400×300 406.4 426 323.9 325 610
400×250 406.4 426 273.0 273 610
450×400 457 480 406.4 426 686
450×350 457 480 355.6 377 686
450×300 457 480 323.9 325 686
450×250 457 480 273.0 273 686
500 ×450 508 530 457.0 480 762
500 ×400 508 530 406.4 426 762
500 ×350 508 530 355.6 377 762
500 ×300 508 530 323.9 325 762
500 ×250 508 530 273.0 273 762
600 ×550 610 630 559.0   914
600 ×500 610 630 508.0 530 914
600 ×450 610 630 457.0 480 914
600 ×400 610 630 406.4 426 914
600 ×350 610 630 356.6 377 914
600 ×300 610 630 323.9 325 914
