Aluminum flange

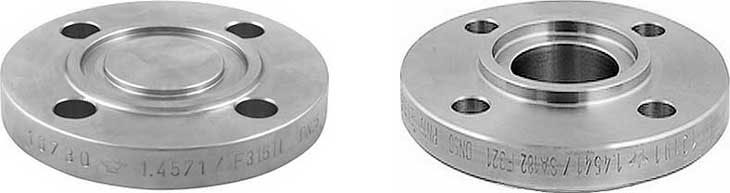

Tongue and groove face aluminum flange
We offer stock for different aluminum fittings, 5086 H32 & 6061 T6 Aluminum Pipe Fittings,aluminum elbow (Radius 90’s, Long Radius 45’s, Long Radius 180’s, Short Radius 90’s, Short Radius 180’s), Tees (Straight and Reducing) Tees and Crosses (Straight and Reducing), Aluminum Caps,Aluminum couplings(straight and reducing), aluminum flanges. We also offer custom manufactured fittings, flanges and pipes.


aluminium flange



aluminum flange


5086 H32
5086 is the preferred hull material for small aluminium boats or larger yachts. Its high strength and good corrosion resistance make it an excellent match for yachting.
5086 has a tendency to undergo stress corrosion cracking and is not used much in aircraft construction as a result.
5086 has been used in vehicle armor, notably in the M113 Armored Personnel Carrier and M2 Bradley Infantry fighting vehicle.

6061-T6
T6 temper 6061 has an ultimate tensile strength of at least 42,000 psi (300 MPa) and yield strength of at least 35,000 psi (241 MPa).  More typical values are 45,000 psi (310 MPa) and 40,000 psi (275 MPa), respectively. In thicknesses of 0.250 inch (6.35 mm) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The typical value for thermal conductivity for 6061-T6 at 80°C is around 152 W/m K. A material data sheet defines the fatigue limit under cyclic load as 14,000 psi (100 MPa) for 500,000,000 completely reversed cycles using a standard RR Moore test machine and specimen. Note that aluminum does not exhibit a well defined “knee” on its S-n graph, so there is some debate as to how many cycles equates to “infinite life”. Also note the actual value of fatigue limit for an application can be dramatically affected by the conventional de-rating factors
of loading, gradient, and surface finish.


aluminium flanges

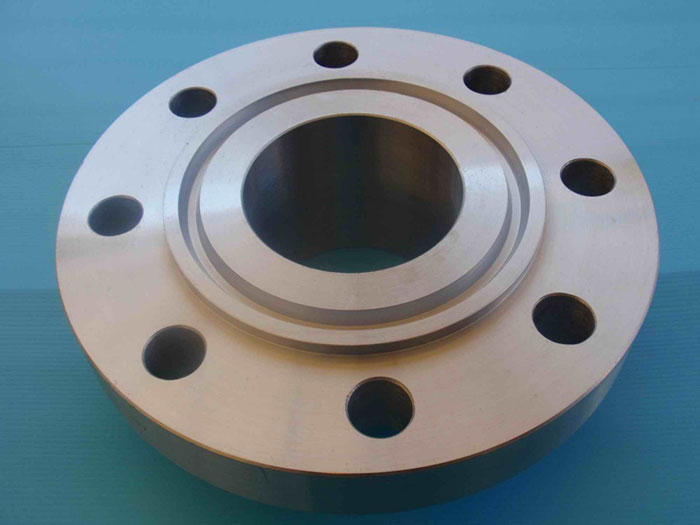

groove face aluminum flange

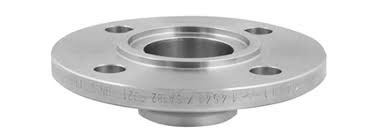

Tongue aluminum flange

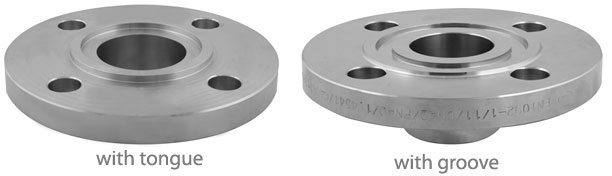

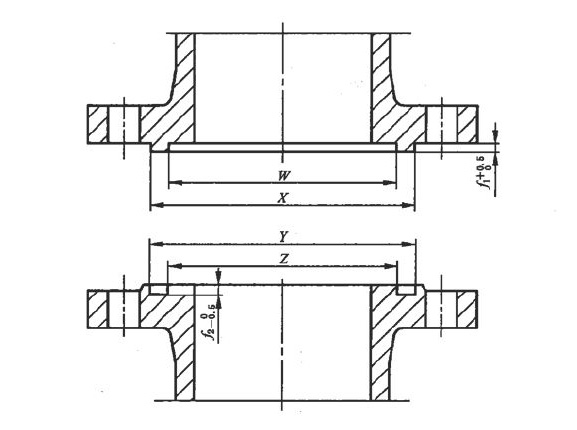

     Tongue and Groove Face Aluminum Flange
Nominal
Dimension  DN
Nominal Pressure  PN 40 and PN 63
W X Y Z f1 f2
10 24 34 35 23 4.0 3.0
15 29 39 40 28 4.0 3.0
20 36 50 51 35 4.0 3.0
25 43 57 58 42 4.0 3.0
32 51 65 66 50 4.0 3.0
40 61 75 76 60 4.0 3.0
50 73 87 88 72 4.0 3.0
65 95 109 110 94 4.0 3.0
80 106 120 121 105 4.0 3.0
100 129 149 150 128 4.5 3.5
125 155 175 176 154 4.5 3.5
150 183 203 204 182 4.5 3.5
175 213 233 234 212 4.5 3.5
200 239 259 260 238 4.5 3.5
225 266 286 287 265 4.5 3.5
250 292 321 313 291 4.5 3.5
300 343 363 364 342 4.5 3.5
350 395 421 422 394 5.0 4.0
400 447 473 474 446 5.0 4.0
450 497 523 524 496 5.0 4.0
500 549 575 576 548 5.0 4.0
600 649 675 676 648 5.0 4.0
