5083 and 5086 are non heat treatable alloys. The mechanical properties of the alloy depend on the chemical composition of the alloy and the hot rolling temperature. The supply status of marine 5083 and 5086 alloy is O, H111 and H112. Among them, the latter is resistant to stress corrosion, and can prevent the tropical climate from intergranular corrosion cracking.

6061 and 6082 aluminum alloys are widely used as light structural materials and widely used in transportation materials. 6061 and 6082 alloy extrusion products need any double base heat treatment for age hardening. The working procedure is as follows:  heating billet, extrusion, profile quenching, solid solution treatment, straightening, aging in furnace. Only by strictly controlling the technological parameters of each process can a satisfactory mechanical performance be achieved.

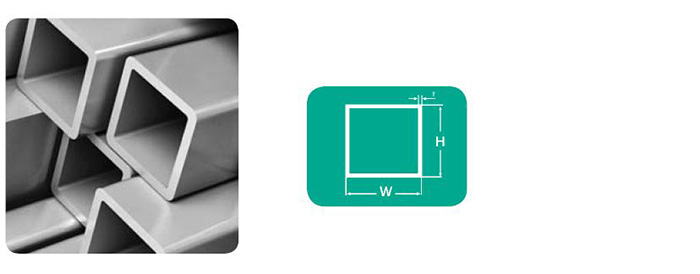

marine aluminum square box

Marine aluminum alloy profiles are generally used on three types of structures:

First, the main force structure with the strength as the main factor, mainly includes the hull structure and superstructure.

Different types of ships with different ship structure, ship structure generally include bottom plate, bottom plate, side plates, sheer strake, bulwark, deck, bulkhead, coaming, ribs, elbow plate, longitudinal beams, ribs, keel, reinforcement, pillar and pole.

The upper atmosphere structure forecastle, bridge and poop. The upper body as the cabin and placement of some ship equipment with the cab, studio, the crew and passengers of the living room and life. The upper structure includes frame, beam, door board, ceiling, partitions, fences and other special angle aluminum profile.

marine grade aluminum square box

Seond,, that is, not force construction or force less components. For example, all kinds of fittings (anchor, mast, chimney, ladder, line and circuit device), oil tank, water tank, watertight doors, windows, cover, sanitary equipment, piping, ventilation, windshield, bracket, streamlined shell, handle, handrail, cylinder, piston, base, sling device and furniture etc. etc..

Third.  The thrid structures refer to decorative and insulated components. The aluminum can color anodized,  and the color anodized aluminum is used as an ornament, which is beautiful, economical and practical.

Marine grade aluminum square tubing Specification:

Alloy:  5083, 5086,5383, 5059, 6061, 6082, 6005A
Temper: H111/H112, T5/T6
Certificate: BV /DNV /ABS/Lioyds
Thickness: 3mm---50mm

Marine Aluminum Square tubing Aluminum Alloys Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga Others Alu
Each Toal
5083 0.40 0.40 0.1 0.4-1.0 4.0--4.9 0.05--0.25 -- 0.25 0.15 -- 0.05 0.15 Remainder
5383 0.25 0.25 0.20 0.7-1.0 4.0-5.2 0.25 -- 0.40 0.15 -- 0.05 0.15 Remainder
5086 0.40 0.50 0.1 0.2--0.7 3.5-4.5 0.05-0.25 - 0.25 0.15 - 0.05 0.15 Remainder
5059 0.45 0.50 0.25 0.6-1.2 5.0-6.0 0.25 - 0.40-0.9 0.20 - 0.05 0.15 Remainder
6061 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 0.15 - 0.05 0.15 Remainder
6005A 0.50-0.9 0.35 0.30 0.50 0.40-0.7 0.30 - 0.20 0.10 - 0.05 0.15 Remainder
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.20 0.10 - 0.05 0.15 Remainder


Mechanical Properties of Marine Grade Aluminum Square tubing
Alloy Form Thickness(mm) Temper Rm Rp0.2
(Mpa)
A% Min
Min.   A₅₀ A
5086 Shapes, Bar, Tube 3≤t≤50 H112 240 95 10 12
5083 Shapes, Bar, Tube Shapes, Bar, Tube 3≤t≤50 3≤t≤50 H111
O and H112
270  270 110     125 10    10 12     12
5059 Shapes, Bar, Tube 3≤t≤50 H112 330 200   10
5383 Shapes, Bar, Tub 3≤t≤50 O 290 145 17 17
Shapes, Bar, Tub 3≤t≤50 H112 310 190   13
6061 Shapes, Bar, Tube Profiles 3≤t≤50 3≤t≤50 T5 or T6
T5 or T6
260   245 240    205 10 8       4
6005A Shapes, Bar, Tube Profiles 3≤t≤50 T5 260 215 9 8
Shapes, Bar, Tube Profiles 3≤t≤10 T6 260 215 8 6
10≤t≤50 250 200 8 6
6082 Shapes, Bar, Tube Closed shapes 3≤t≤50 3≤t≤50 T5 or T6
T5 or T6
310     290 260    240 10 8       5


Marine Aluminum Grade  Square tubing Mould Code:

Material Code A(mm) Wall Thickness(mm) NR WR G (Kg/m)
TF-76 13 1.100     0.141
CAM_A000804 15 1.000     0.151
CAM_A000483 15 2.000     0.281
TF-01 19 1.000     0.194
TF-162 19 1.200     0.229
CAM_DOO5057 19.05 1.270     0.244
CAM_D004780 19.05 1.397 0.56 1.96 0.258
CAM_D005804 19.05 1.590     0.299
CAM_A000861 19.05 1.630     0.306
CAM_DOO0561 19.05 1.650     0.311
ALD_D001817 19.05 1.830 6.28 6.28 0.34
CAM_D001786 19.05 2.413 0.8 2.8 0.416
CAM_DOO0848 19.05 3.180     0.543
TF-40 20 1.000     0.205
TF-52 20 1.000     0.205
TF-40 20 1.200     0.244
TF-52 20 1.400     0.281
TF-40 20 1.500     0.3
CAM_A000394 20 1.500     0.3
CAM_A000280 20 2.000     0.389
ALD_D000566 20 3.000     0.551
ALD_D000567 20 3.000 3 3 0.551
CAM-632 24.8 2.300 1 2 0.552
CAM_A000984 25 1.500     0.381
ALD_D000568 25 1.600     0.404
CAM_A000281 25 2.000     0.497
ALD_D000400 25 3.000   3 0.692
ALD_D000569 25 3.000 3 3 0.713
TF-02 25.4 1.000     0.264
CAM_D004978 25.40 1.020 3.96 3.96 0.267
CAM_D004686 25.40 1.140 0.79 1.98 0.292
TF-02 25.4 1.200     0.314
ALD_D000528 25.4 1.220     0.319
CAM_D004198 25.40 1.270 1.27 2.54 0.319
CAM_D002819 25.40 1.400 0.56 1.96 0.354
CAM_DOO0847 25.4 1.570     0.406
CAM_D001027 25.40 1.575 2.39 2.39 0.405
CAM_A000860 25.4 1.630     0.417
CAM_DOO0234 25.4 1.650     0.424
CAM_D004046 25.40 1.905 2.06 3.96 0.457
CAM_DOO0047 25.4 3.050     0.734
CAM_D000835 25.40 3.175 0.91 3.96 0.728
CAM_D001028 25.40 3.180 3.18 3.18 0.760
CAM_DOO0235 25.4 3.180     0.76
CAM_A000696 25.4 3.250     0.778
CAM_D002024 28.58 1.880 1.52 3.18 0.524
CAM_A000282 30 1.500     0.462
CAM_A000108 30 2.000     0.605
TF-110 30 2.000     0.605
CAM_A000350 30 3.000     0.875
CAM_DOO0048 31.75 3.050     0.943
CAM_DOO0236 31.75 3.180     0.978
CAM_A000840 31.75 3.250     1.001
CAM_D004463 31.75 4.763 4.76 4.76 1.387
ALD_D000529 32.00 2.000     0.648
ALD_D000398 32.00 3.000     0.940
CAM_A000739 34 2.000     0.691
CAM_A000530 34 3.000     1.004
CAM_D004886 34.37 3.175 0.79 3.18 1.048
CAM_A000459 35 2.000     0.713
CAM_A000607 35 3.000     1.037
CAM-609 35.5 2.000 2 4 0.696
CAM-609 35.5 2.000 4 4 0.696
TF-164 38 1.600 0.5 1 0.627
CAM_D006306 38.1 1.020 3.96 3.96 0.408
CAM_DOO4329 38.1 1.020     0.408
CAM_D004199 38.10 1.143 1.9 3.05 0.443
CAM_D004689 38.10 1.143 1.57 0.38 0.461
CAM_D004974 38.10 1.143 3.96 3.96 0.456
CAM_D000113 38.1 1.270     0.505
CAM_D004688 38.10 1.397 0.56 1.96 0.546
CAM_D005666 38.10 1.520 1.27 2.54 0.591
CAM_D001235 38.10 1.575 0.4 0.4 0.621
CAM_D000028 38.10 1.600 1.6 3.2 0.612
CAM_DOO1327 38.1 1.650     0.65
CAM_DOO0049 38.1 3.050     1.152
CAM_D002821 38.10 3.175 1.52 3.18 1.178
CAM_D005267 38.10 3.175 1.52 0.81 1.201
CAM_DOO0237 38.1 3.180     1.196
CAM_A000697 38.1 3.250     1.198
CAM_D000834 38.10 3.556 3.18 3.18 1.326
ALD_D001136 40.00 1.600     0.664
CAM_A000283 40 2.000     0.821
CAM_A000351 40 2.500     1.013
CAM_A000261 40 3.000     1.199
ALD_D000571 40 3.000   3 1.179
CAM_A000284 40 4.000     1.555
CAM_DOO0050 44.45 3.050     1.362
CAM_DOO2020 44.45 3.180     1.416
ALD_D003044 45 1.500     0.705
CAM_A000360 45 2.000     0.929
TF-167 50 1.000     0.529
TF-39 50 1.000     0.529
TF-39 50 1.200     0.632
TF-39 50 1.400     0.735
TF-39 50 1.500     0.786
ALD_D000411 50 1.600 4.2 6 0.794
ALD_D002719 50 1.600     0.836
ALD_D000612 50 1.800 4.7 6.5 0.89
ALD_D000820 50 1.900 4.6 6.5 0.938
TF-39 50 2.000     1.037
CAM_A000358 50 2.000     1.037
AUS_D000270 50 2.000 4 6 0.99
ALD_D000399 50 2.500     1.283
TF-39 50 3.000     1.523
CAM_A000051 50 3.000     1.523
CAM_A001049 50 3.200     1.617
CAM_A000352 50 4.000     1.987
ALD_D001137 50.8 1.800 4.5 6.3 0.908
ALD_D000573 50.8 2.000 4 6 1.008
CAM_D000697 50.80 2.540 0.63 2.36 1.312
CAM_DOOOO51 50.8 3.050     1.57
CAM_D000692 50.80 3.175 0.4 3.2 1.609
CAM_DOOO238 50.8 3.180     1.631
ALD_D000413 50.8 3.180 1.55 4.75 1.589
CAM_A000699 50.8 3.250     1.67
CAM_DOOO239 50.8 4.780     2.374
CAM_DOOO968 50.8 6.100     2.943
CAM_D000823 50.80 6.350 3 3.2 3.046
CAM_DOOO240 50.8 6.350     3.047
CAM_A000460 55 2.000     1.145
ALD_D003217 55 2.000 2 4 1.117
ALD_D003017 56.8 2.000 3.2 5 1.149
TF-94 60 1.200     0.762
TF-72 60 1.400     0.885
CAM_A000531 60 2.000     1.253
TF-72 60 2.500     1.552
TF-72 60 3.000     1.846
CAM_A000353 60 3.000     1.847
CAM_A000109 60 4.000     2.419
CAM_DOO4584 63.5 6.100     3.778
CAM_DOO0241 63.5 6.350     3.918
TF-45 65 1.400     0.961
TF-24 67 1.200     0.853
CAM_A000719 70 2.000     1.469
CAM_A000448 70 4.000     2.851
AUS_D000631 75 3.000 2 5 2.284
TF-19 76 1.000     0.81
TF-19 76 1.200     0.969
TF-19 76 1.500     1.207
ALD_D002752 76 6.200 9.8 16 4.303
CAM_D005242 76.20 2.286 6.35 3.17 1.898
CAM_DOO0242 76.2 3.180     2.502
CAM_A000701 76.2 3.250     2.561
CAM_DOO0243 76.2 4.780     3.683
CAM_DOO0969 76.2 6.100     4.614
CAM_D002749 76.20 6.350 6.35 10.03 4.649
CAM_D002823 76.20 6.350 3.18 9.53 4.603
CAM_DOO0244 76.2 6.350     4.788
CAM_A000268 80 2.000     1.685
CAM_A000354 80 3.000     2.495
CAM_A000359 80 4.000     3.283
CAM_A000356 80 5.000     4.05
CAM_A000485 80 6.000     4.795
CAM_A000882 80 8.000     6.221
TF-117 85 1.200     1.086
CAM_D006107 85.73 6.350 6.35 6.35 5.444
TF-128 86 1.900     1.726
CAM_D000399 88.90 3.175 1.6 3 2.924
CAM_DOO4587 88.9 6.100     5.45
TF-114 90 1.400     1.34
CAM_A000602 90 4.000     3.715
TF-116 93 1.200     1.19
TF-20 100 1.500     1.596
CAM_A000642 100 2.000     2.117
TF-20 100 2.000     2.117
CAM_A000548 100 3.000     3.143
CAM_A001050 100 3.800     3.948
CAM_A000052 100 4.000     4.147
CAM_A000449 100 5.000     5.13
CAM_A000827 100 10.000     9.72
TF-81 101.6 1.500     1.622
CAM_D000400 101.60 3.175 1.6 3 3.359
CAM_D000698 101.60 3.175 3.18 6.35 3.302
CAM_DOO0432 101.6 3.180     3.372
CAM_A000703 101.6 3.250     3.453
CAM_D000694 101.60 4.775 4.8 4.8 4.991
CAM_DOO1653 101.6 4.780     4.991
CAM_DOO0433 101.6 6.100     6.286
CAM_D001021 101.60 6.350 0.4 6.35 6.437
CAM_D002346 101.60 6.350 6.35 12.7 6.249
CAM_DOO6525 101.60 6.350 0.79 1.57 6.528
CAM_DOO1652 101.6 6.350     6.53
TF-120 120 2.150     2.799
CAM_A000663 120 2.500     3.173
CAM_A000532 120 5.000     6.21
TF-205 120 7.000 1 1 8.54
TF-132 126.5 3.000     4.001
CAM_DOO2669 127 3.180     4.243
CAM-107 140 12.000 3 3 16.589
AUS_D000411 150 3.750     5.923
CAM_DOO2667 152.4 3.180     5.113
CAM_D005777 152.4 12.700     19.161
CAM-106 160 12.000 3 3 19.181
CAM_DOO2266 203.2 9.530     19.915
ALD_D003625 250 12.000 4 12 30.548
