Marine grade aluminum profile

Marine grade aluminum t bar
5083 and 5086 are non heat treatable alloys. The mechanical properties of the alloy depend on the chemical composition of the alloy and the hot rolling temperature. The supply status of marine 5083 and 5086 alloy is O, H111 and H112. Among them, the latter is resistant to stress corrosion, and can prevent the tropical climate from intergranular corrosion cracking.

6061 and 6082 aluminum alloys are widely used as light structural materials and widely used in transportation materials. 6061 and 6082 alloy extrusion products need any double base heat treatment for age hardening. The working procedure is as follows:  heating billet, extrusion, profile quenching, solid solution treatment, straightening, aging in furnace. Only by strictly controlling the technological parameters of each process can a satisfactory mechanical performance be achieved.

marine aluminum t bar

Marine aluminum alloy profiles are generally used on three types of structures:

First, the main force structure with the strength as the main factor, mainly includes the hull structure and superstructure.

Different types of ships with different ship structure, ship structure generally include bottom plate, bottom plate, side plates, sheer strake, bulwark, deck, bulkhead, coaming, ribs, elbow plate, longitudinal beams, ribs, keel, reinforcement, pillar and pole.

marine grade aluminum t bar

The upper atmosphere structure forecastle, bridge and poop. The upper body as the cabin and placement of some ship equipment with the cab, studio, the crew and passengers of the living room and life. The upper structure includes frame, beam, door board, ceiling, partitions, fences and other special angle aluminum profile.

Seond,, that is, not force construction or force less components. For example, all kinds of fittings (anchor, mast, chimney, ladder, line and circuit device), oil tank, water tank, watertight doors, windows, cover, sanitary equipment, piping, ventilation, windshield, bracket, streamlined shell, handle, handrail, cylinder, piston, base, sling device and furniture etc. etc..

Third.  The thrid structures refer to decorative and insulated components. The aluminum can color anodized,  and the color anodized aluminum is used as an ornament, which is beautiful, economical and practical.

Marine Aluminum T Bar Specification:
Alloy:  5083, 5086, 5383, 5059, 6061, 6082,6005A
Temper: H111/H112, T5/T6
Certificate: BV /DNV /ABS/Lioyds
Thickness: 3mm---50mm

Mechanical Properties of Marine Aluminum T Bar
Alloy Form Thickness(mm) Temper Rm Rp0.2
(Mpa)
A% Min
Min.   A₅₀ A
5086 Shapes, Bar, Tube 3≤t≤50 H112 240 95 10 12
5083 Shapes, Bar, Tube Shapes, Bar, Tube 3≤t≤50 3≤t≤50 H111
O and H112
270  270 110     125 10    10 12     12
5059 Shapes, Bar, Tube 3≤t≤50 H112 330 200   10
5383 Shapes, Bar, Tub 3≤t≤50 O 290 145 17 17
Shapes, Bar, Tub 3≤t≤50 H112 310 190   13
6061 Shapes, Bar, Tube Profiles 3≤t≤50 3≤t≤50 T5 or T6
T5 or T6
260   245 240    205 10 8       4
6005A Shapes, Bar, Tube Profiles 3≤t≤50 T5 260 215 9 8
Shapes, Bar, Tube Profiles 3≤t≤10 T6 260 215 8 6
10≤t≤50 250 200 8 6
6082 Shapes, Bar, Tube Closed shapes 3≤t≤50 3≤t≤50 T5 or T6
T5 or T6
310     290 260    240 10 8       5


Marine Aluminum T Bar Aluminum Alloys Composition
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga Others Alu
Each Toal
5083 0.40 0.40 0.1 0.4-1.0 4.0--4.9 0.05--0.25 -- 0.25 0.15 -- 0.05 0.15 Remainder
5383 0.25 0.25 0.20 0.7-1.0 4.0-5.2 0.25 -- 0.40 0.15 -- 0.05 0.15 Remainder
5086 0.40 0.50 0.1 0.2--0.7 3.5-4.5 0.05-0.25 - 0.25 0.15 - 0.05 0.15 Remainder
5059 0.45 0.50 0.25 0.6-1.2 5.0-6.0 0.25 - 0.40-0.9 0.20 - 0.05 0.15 Remainder
6061 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 - 0.25 0.15 - 0.05 0.15 Remainder
6005A 0.50-0.9 0.35 0.30 0.50 0.40-0.7 0.30 - 0.20 0.10 - 0.05 0.15 Remainder
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.20 0.10 - 0.05 0.15 Remainder

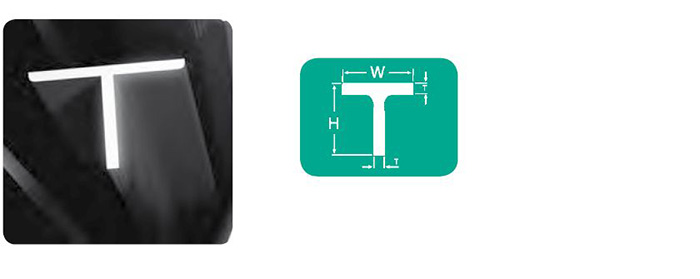

Marine Aluminum T Bar Mould List:

Material Code A(mm) B(mm) T1(mm) T2(mm) R G (Kg/m)
CAM-513 20 12.8 0.8 0.8   0.069
CAM_A001407 20 20 2 2   0.205
TP-680 22 9 2 2   0.157
CAM_A000935 22.5 48 2.5 2.5 0.5 0.454
TP-59 25 25 1 1   0.132
CAM_A000973 25 25 2 2   0.259
CAM_A000801 25 25 3 3   0.381
TP-170 25 25 3 3   0.381
TP-171 25 40 3 3   0.502
TP-21 25.4 31.75 0.9 0.9 0.5 0.137
CAM_A000228 30 30 3 3   0.462
CAM_D005016 33.78 23.88 1.52 2.03   0.261
CAM_A000774 35 35 3 3   0.543
ALD_D001980 40 20 1.6 1.6   0.252
ALD_D003711 40 25 1.6 1.6   0.274
ALD_D001143 40 40 1.6 1.6   0.339
CAM_A000520 40 40 3 3   0.624
CAM_A000521 40 40 4 4   0.821
ALD_D001862 40 40 6 6   1.199
CAM_D007940 41.28 30.15 1.57 2.29   0.351
ALD_D000071 45 100 8 5 4 2.233
ALD_D003206 45 100 8 4 4 1.984
CAM_A000425 50 50 3 3   0.786
CAM_A000229 50 50 4 4   1.037
CAM_A000457 50 50 5 5   1.282
ALD_D000430 50 50 6 6 6 1.564
ALD_D000068 50 60 6 4 4 1.411
ALD_D002981 50 60 6 4 4 1.412
TP-972 50 60 6 4 4 1.406
ALD_D000069 50 70 8 4 4 1.768
ALD_D002982 50 70 8 4 4 1.768
TP-1043 50 100 5 5   1.958
TP-973 50 120 3 6.5 21.75 3.005
CAM_A000782 50.8 50 10 10   2.425
CAM_D002496 50.8 50.8 6.35 6.35   1.633
CAM_D005299 50.8 101.6 6.35 6.35   2.504
CAM_D002830 50.8 152.4 6.35 6.35   3.375
CAM_D002890 50.8 152.4 9.35 9.35   4.981
CAM_A000903 60 30 4 4   0.929
CAM_A000230 60 60 4 4   1.253
CAM_A000879 60 60 7 7   2.136
CAM_D002394 63.5 279.4 9.53 9.53 6.35 8.62
ALD_D000070 80 139 8 5 10 3.612
ALD_D002984 80 163 8 5 6 3.862
ALD_D000065 80 208 8 6 2 5.006
TP-91 100 43 3 3 0.5 1.134
CAM_A000716 100 60 3.5 4 3 1.566
TP-94 100 73 3 3 3 1.388
CAM_A000950 110 50 1.8 1.8 0.2 0.769
CAM_A001035 120 50 1.8 1.8 0.2 0.817
ALD_D000469 250 366 16 12.7 10 22.917
CAM-751 180 90 15 60 10 19.419
CAM-752 180 100 30 60 10 25.899
