Marine grade aluminum tread plate

5052 marine grade Aluminum tread plate sheet
5052 marine grade aluminum tread plate sheet containing 2.5% mg, 0.25% chromium, usually used in flat rolling coils and plates of various mills. Like all 5000 series of high magnesium alloys, the 5052 has a fairly high strength and can be hardened to a large extent by cold working, enabling the production of a series of "H" states.5052 marine grade Aluminum tread plate sheet also used as a pedal production (also known as inspection board), the main purpose is industrial applications.

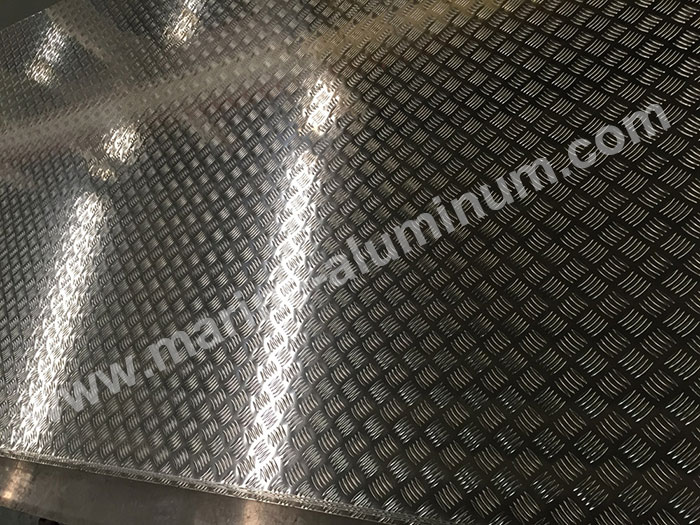

5052 aluminium tread sheet

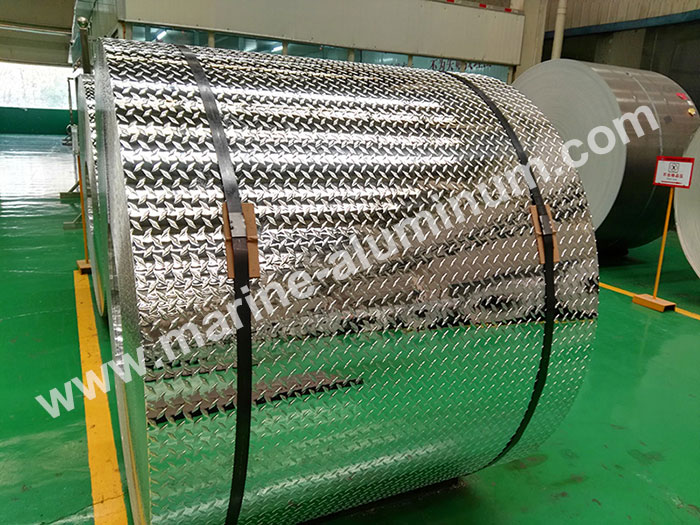

5052 aluminum tread sheet

Indestructible and resilient despite low weight
5052 marine grade Aluminum tread plate sheet is very resilient to aggressive substances and is therefore considered indestructible. Because of their durability, they are used in many different fields because they do not lose their shape or appearance even after a long time. Whether industrial floors, aircraft, ships and vehicles, or indoor or outdoor staircases, 5052 marine grade Aluminum tread plate sheet is a popular material, because of its excellent performance, high flexibility and low weight and is recognized. And because of its decorative appearance, often used by designers.

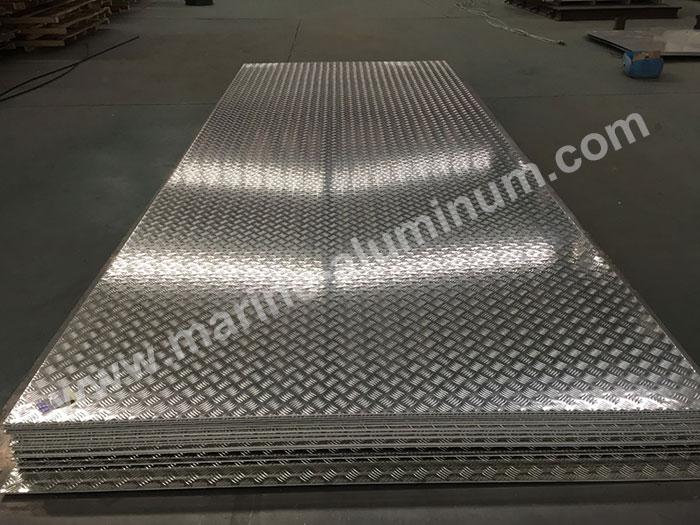

5052 aluminum tread plate

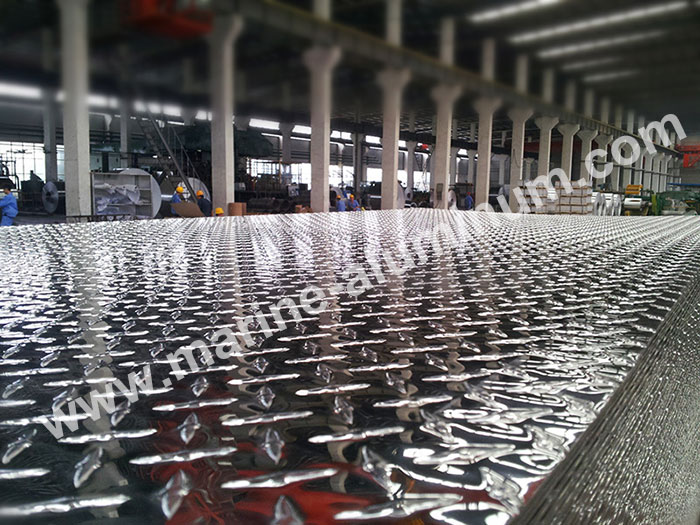

aluminum tread sheet

Pattern texture ensures skid proof
During production, the pattern is applied to the plate by forming rolls which are pressed onto the plate with a large force. In doing so, the bottom of the plate remains plain. It is not possible to emboss the aluminium plate subsequently.

Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.

Depending on the type of plate, 1 to 5 bars are arranged next to each other, forming a checked pattern. It is differentiated between 1 bar(diamond), 2 bar, 3-bar and 5-bar patterns.

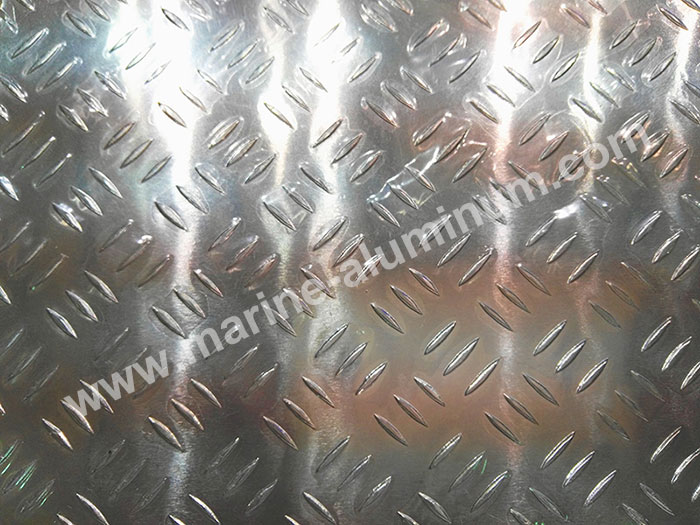

aluminium tread plate sheet

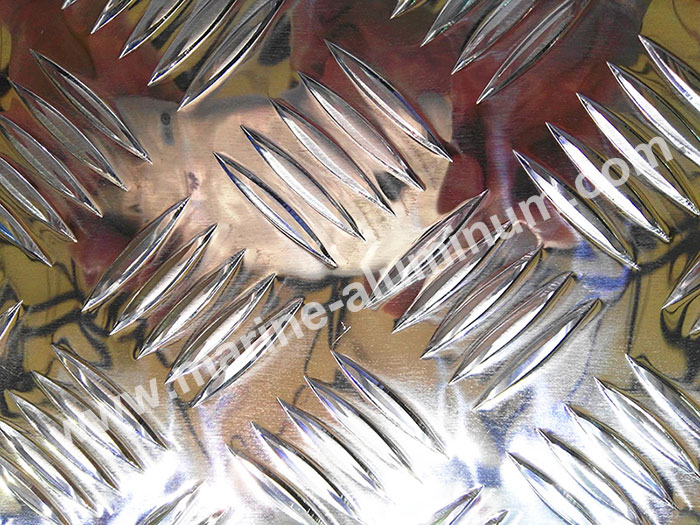

aluminum tread plate sheet

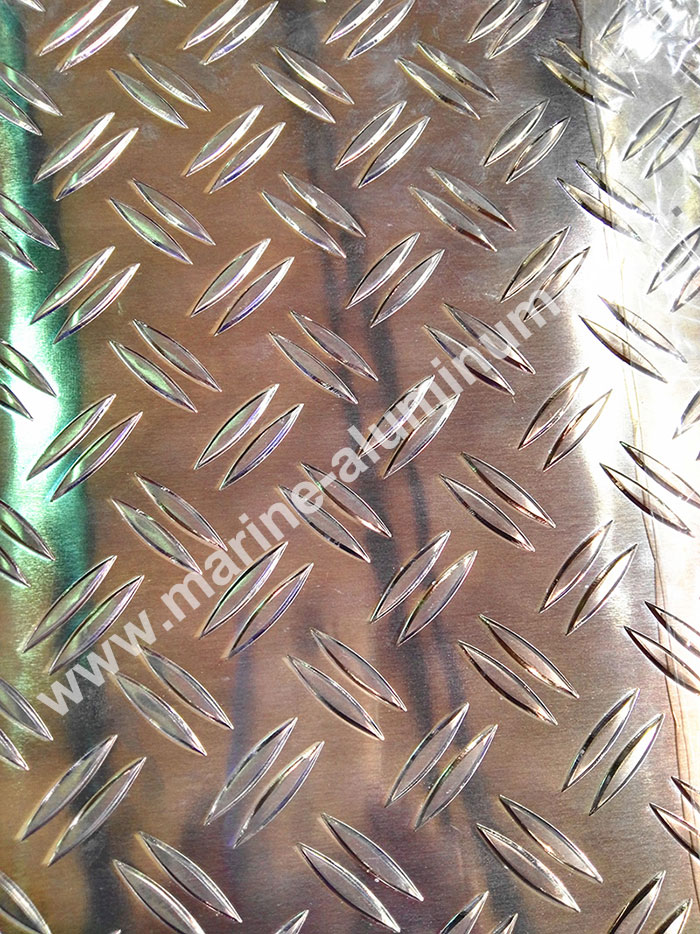

5052 aluminum tread plate sheet



Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Each Total Alu
5052 0.25 0.4 0.1 0.1 2.2--2.8 0.15-0.35 - 0.10 - - - 0.05 0.15 Remainder

Alloy 1060, 1100, 1200, 3003, 3105, 5005, 5052, 5251, 5754, 5454, 5154, 5083, 5086  6061, 6082
Temper H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface Bright finish, Mill finish
Bar Difference 1 bar (Diamond), 2 bar, 3 bar, 5 bar

Available Dimension
  Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) Maximum 6000mm Maximum 6000mm
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

Application:
A. 5052 Aluminum tread checkered plate sheet has good skid resistance. So it is usually used in the loading ramps, dock flooring, trench covers, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, ceilings and cabinet.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.

Compliance with international standards
EN 573-3 Aluminium and aluminium alloys - Chemical composition and form of wrought products – Part 3: Chemical composition and form of products
EN 1386 Aluminium and aluminium alloys - Tread plate - Specifications
EN 15088 Aluminium and aluminium alloys - Structural products for construction work - Technical conditions for inspection and delivery
