Marine grade aluminum tread plate

5086 marine grade aluminum tread plate sheet
5086 marine grade aluminum tread plate sheet has higher strength than 5052 and 5083 plates.  5086 aluminum plate is particularly resistant to salt water corrosion. Because 5086 aluminum is not heat treated, it is easy to form, stamp and weld.  5086 plate is used for: boat hulls,superstructures,  gangways, ramps, shipping drums,support structures for marine applications.

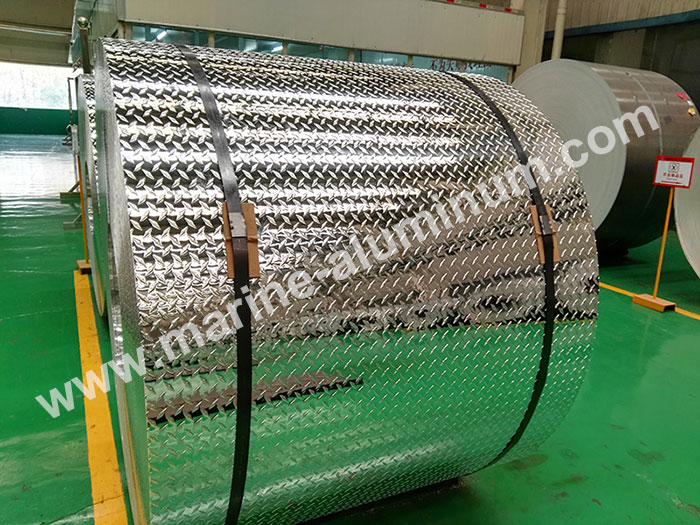

5086 bright aluminium diamond plate

5086 aluminum tread plate sheet

Indestructible and resilient despite low weight
5086 marine grade aluminum tread plate sheet is very resilient to aggressive substances and is therefore considered indestructible. Because of their durability, they are used in many different fields because they do not lose their shape or appearance even after a long time. Whether industrial floors, aircraft, ships and vehicles, or indoor or outdoor staircases, 5086 marine grade aluminum tread plate sheet is a popular material, because of its excellent performance, high flexibility and low weight and is recognized. And because of its decorative appearance, often used by designers.

Pattern  texture ensures skid proof
During production, the pattern is applied to the plate by forming rolls which are pressed onto the plate with a large force. In doing so, the bottom of the plate remains plain. It is not possible to emboss the aluminium plate subsequently.

5086 aluminium tread plate sheet

5086 aluminum tread plate

Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.

Depending on the type of plate, 1 to 5 bars are arranged next to each other, forming a checked pattern. It is differentiated between 1 bar(diamond), 2 bar, 3-bar and 5-bar patterns.

aluminum tread sheet

aluminium tread sheet

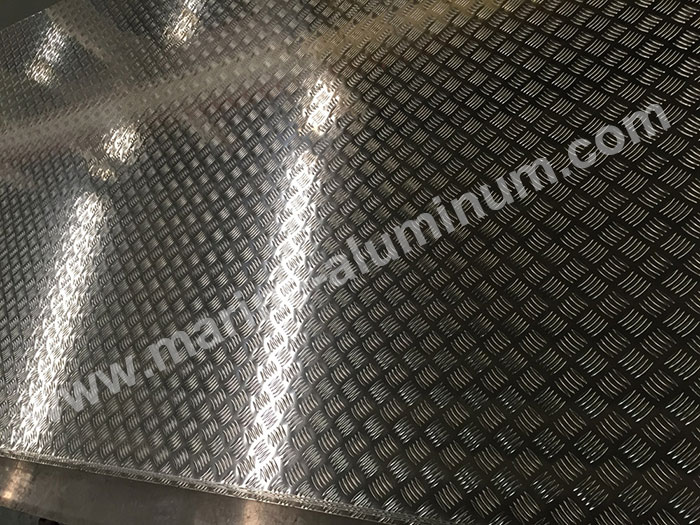

5086 aluminum checkered sheet

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Each Total Alu
5086 0.4 0.5 0.10 0.20-0.7 3.5--4.5 0.05-0.25 - 0.25 0.15 - - 0.05 0.15 Remainder

Alloy 1060, 1100, 1200, 3003, 3105, 5005, 5052, 5251, 5754, 5454, 5154, 5083, 5086  6061, 6082
Temper H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface Bright finish, Mill finish
Bar Difference 1 bar (Diamond), 2 bar, 3 bar, 5 bar
Available Dimension
  Mill finish Surface Bright finish Surface
Thickness  (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) Maximum 6000mm Maximum 6000mm
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm


Application
A. 5086 marine grade aluminum tread plate sheet has good skid resistance. So it is usually used in the trench covers, loading ramps, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.
B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.
C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
