5086 marine grade aluminum plate sheet

Since heat treatment doesn't strongly affect the strength, 5086 marine grade aluminum alloy plate sheet be readily welded and retain most of its mechanical strength. The good results with welding and good corrosion properties in seawater make 5086 extremely popular for vessel gangways, building boat and yacht hulls.

Because 5086 marine grade aluminum plate sheet its high strength and good corrosion resistance, make it an excellent match for yachting, small aluminum boats or larger yachts.

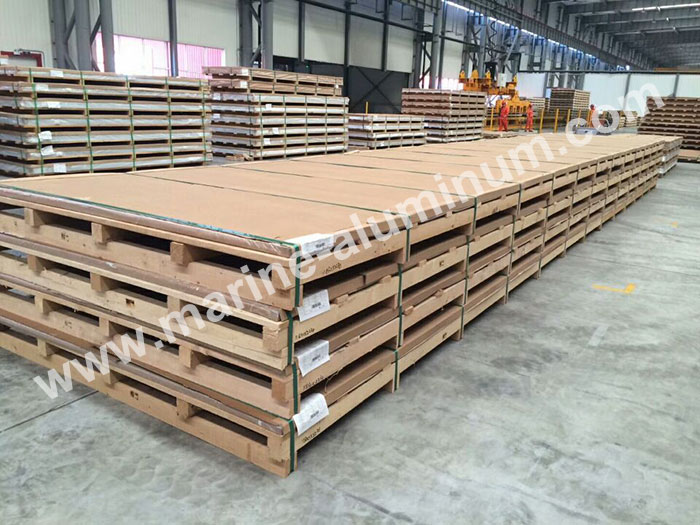

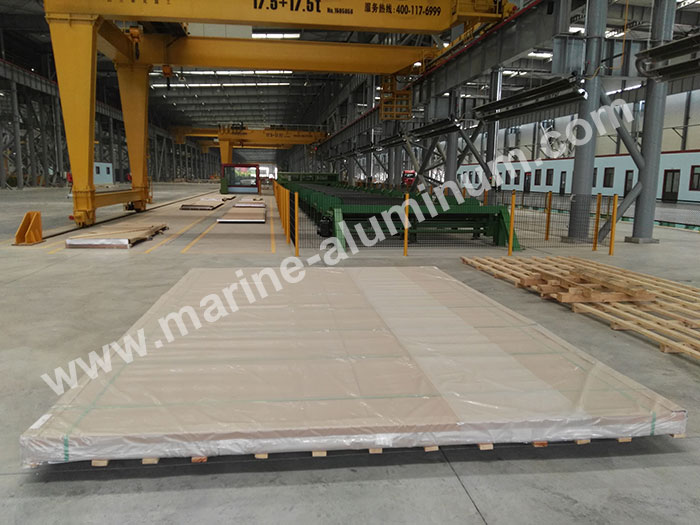

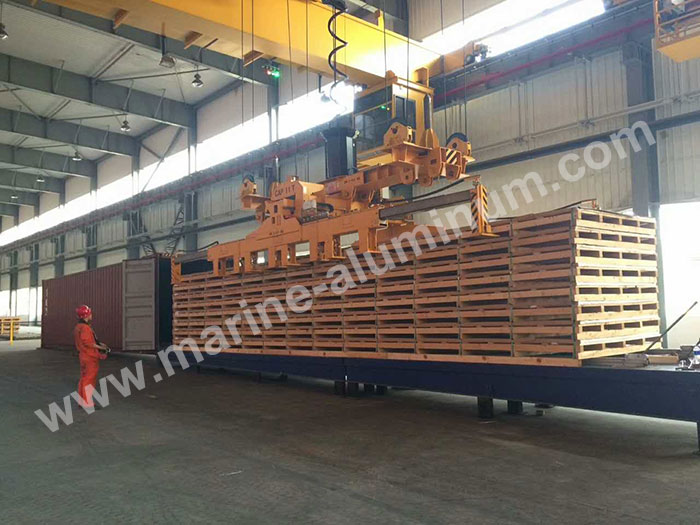

5086 marine grade aluminum plate package

Alloy Grade: 5083, 5086
Temper: O, H111. H112, H116, H321
Dimensions: T(1.5-120) X W(1000-3100) X (1000-13000)mm
Certificate: BV /DNV /ABS/Lioyds
Applications: Aluminum is the material of first selection of designers in high-speed ship, such as express ferries, LNG spherical tank type fluid reservoirs, hydrofoils, offshore working ships and yachts, and is widely used to shipboards, bottom plating, portholes, carrier plates and side plates of ship containers, etc.
Product Features: Long width, anti-corrosion, small elastic modulus, easy to welding, easy processing, without low temperature brittleness as well as non-magnetic.

5086 marine grade aluminum plate composition
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Ga	Others		Alu
											Each	Toal
5086	0.40	0.50	0.1	0.2--0.7	3.5-4.5	0.05-0.25	-	0.25	0.15	-	0.05	0.15	Remainder

5086 Marine Grade Aluminum Specification & Performance
Temper	Specified thickness(mm)		Rm MPa		Rp0,2 MPa		Elongation min. %		Bend radiusa		Hardness HBWa
Temper	over	up to	min.	max.	min.	max.	A50 mm	A	180°	9o°
Fa	≥2.5	150.0	240
O/H111	0.2	0.5	240	310	100		11		1.0t	0.5t	65
	0.5	1.5	240	310	100		12		1.0t	1.0t	65
	1.5	3.0	240	310	100		13		1.0t	1.0t	65
	3.0	6.0	240	310	100		15		1.5t	1.5t	65
	6.3	12.5	240	310	100		17			2.5t	65
	12.5	150.0	240	310	100			16			65
H112	≥6.0	12.5	250		105		8				69
	12.5	40.0	240		105			9			65
	40.0	80.0	240		105			12			65
H116/ H321b	≥1.5	3.0	275		195		8		2.0t	2.0t	81
	3.0	6.0	275		195		9			2.5t	81
	6.0	12.5	275		195		10			3.5t	81
	12.5	50.0	275		195			9			81

Difference between 5083 and 5086 marine grade aluminum plate

These two alloys are high-magnesium alloys, have good strength in non-heat treatable alloys, and have good corrosion resistance and machinability. The surface is beautiful after anodizing. The arc welding performance is good. Excellent corro...[details]
