Product Status: All Status
Common specifications: 0.15-600mm
Application areas: shipbuilding, automobile manufacturing, etc.
Processing technology: hot rolling

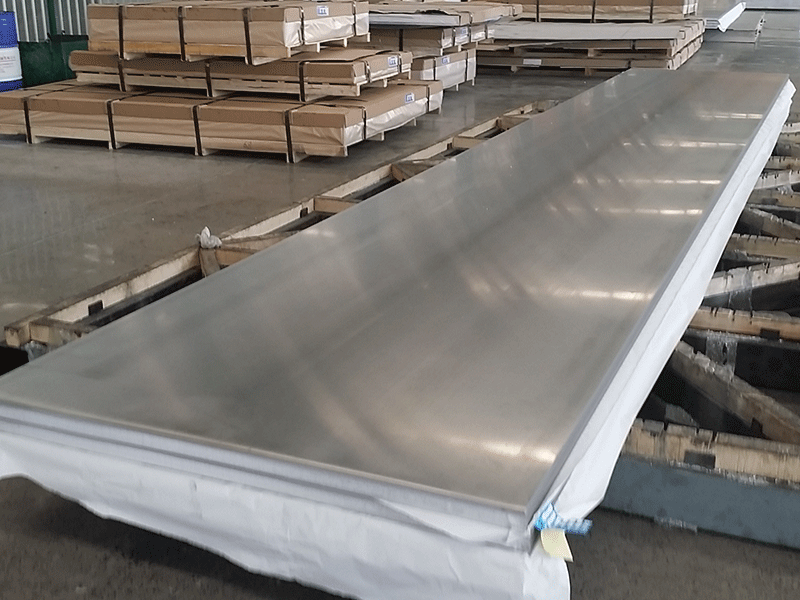

5A06 aluminum alloy ship sheet metal - Product Introduction

5A06 alloy is a high-magnesium alloy, which is AL-Mg rust-proof aluminum. 5A06 aluminum alloy has high strength and corrosion resistance, and the plasticity is good under annealing and extrusion. The weld seam with argon arc welding has good airtightness and weld plasticity. The strength of the welded joint of gas welding and spot welding is 90~95% of the strength of the base, and the machinability is good.

Performance advantage

1. High strength and corrosion resistance;
2, the welding seam with argon arc welding, air tightness and weld plasticity is acceptable, the welding joint strength of gas welding and spot welding is 90~95% of the strength of the base, and the machinability is good;
3, the surface of the marine grade aluminum plate has no oil spots, no waves, no scratches, no roll printing, neat trimming, no burrs;

4. The company's 1 1 hot rolling production line was completed and put into production. The assembly technology is high and the process is mature. The performance of the 5a06 aluminum sheet is comparable to that of foreign materials and the performance is good.

Alloy	Temper	thickness（mm）	width（mm）	length（mm）
5A06	O,H12,H14, H16,H18,H19, H22,H24,H26, H28,H32,H34 H36,H38,H111, H112,H114,H 116,H321	0.15-600	20-2600	500-16000
