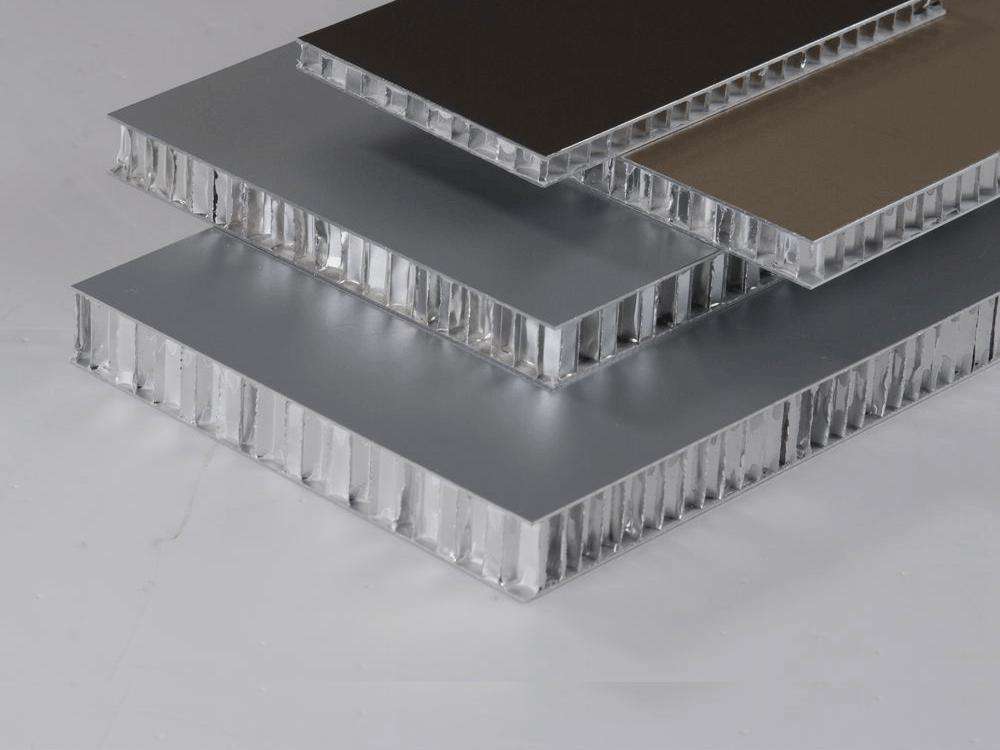

The aluminum honeycomb panel for passenger ships adopts hot press forming technology. Due to the high heat conduction value between the aluminum skin and the honeycomb, the thermal expansion and contraction of the inner and outer aluminum skins are synchronized; the honeycomb aluminum skin has small holes to allow the gas inside the plate to flow freely; The installation buckle system does not cause structural deformation during thermal expansion and contraction. The panel is mainly made of high quality 3003H24 alloy aluminum plate or 5052AH14 high manganese alloy aluminum plate as the substrate, and the thickness of the panel is 0.8~1.5mm fluorocarbon roll coating or color resistant paint. The color-resistant paint is stronger than PVDF in scratch resistance, acid rain corrosion, self-cleaning, and the thickness of the bottom plate is 0.6~1.0mm, and the total thickness is 25mm.



The passenger ship honeycomb aluminum plate has the following advantages:
(1) Fire prevention: The aluminum plate is a non-combustible material.
(2) Corrosion resistance: Honeycomb aluminum plate is treated with epoxy fluorocarbon and has strong corrosion resistance. The salt spray was sprayed for 48 hours without pinholes, cracks, and no bubbles.
(3) Environmental protection: Honeycomb panels are pure aluminum products, which do not volatilize any harmful gases, no radioactivity and can be completely recycled, 100% environmentally friendly products.
(4) The honeycomb aluminum plate is easy to disassemble and assemble, and the plate is not removed. Due to its light weight and convenient transportation, it can be transported to different places for repeated use. This is not comparable to other partition plates.
Honeycomb aluminum plate and marble honeycomb panel have the advantages of fireproof, heat preservation, sound insulation, shockproof, heavy, cushioning and light weight.
