Aluminum elbows

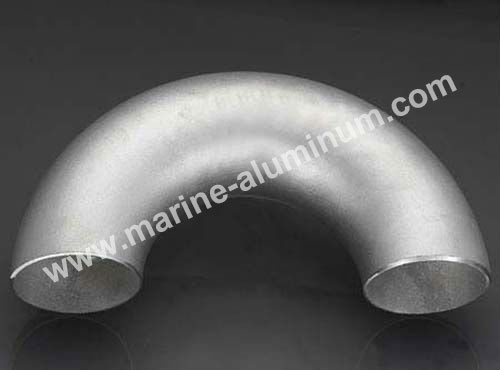

Short radius aluminum 180 degree elbow
We offer stock for different aluminum fittings, 5086H32 & 6061T6 Aluminum Pipe Fittings,aluminum elbow (Radius 90’s, Long Radius 45’s, Long Radius 180’s, Short Radius 90’s, Short Radius 180’s), Tees (Straight and Reducing) Tees and Crosses (Straight and Reducing), Aluminum Caps,Aluminum couplings(straight and reducing), aluminum flanges. We also offer custom manufactured fittings, flanges and pipes.

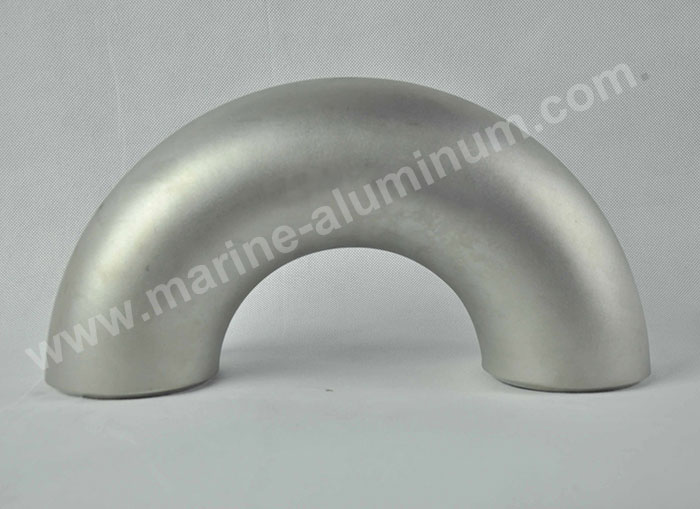

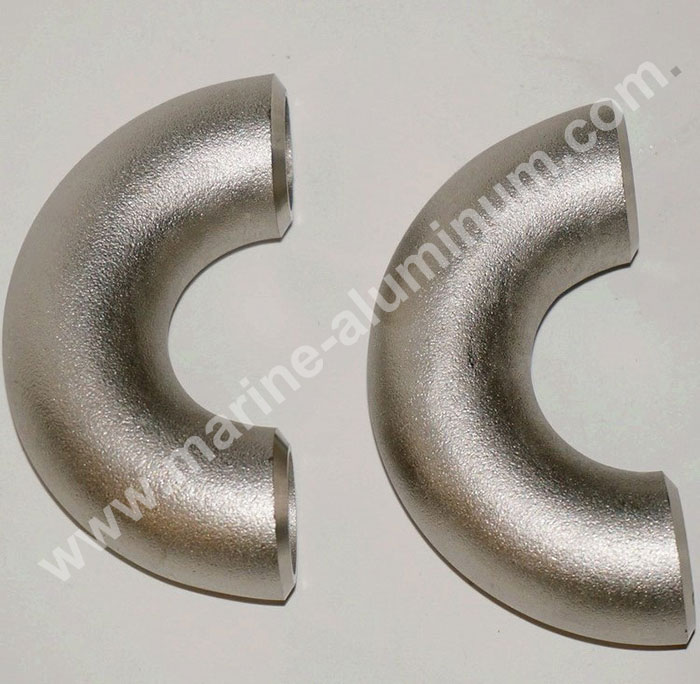

short radius aluminum 180 degree elbow

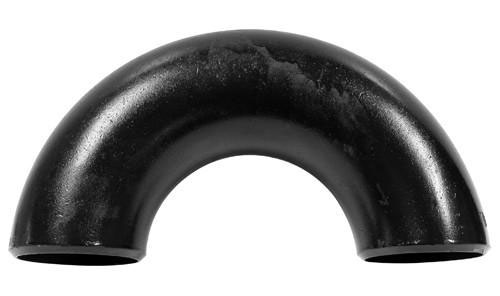

aluminum 180 degree elbow

5086 H32
5086 is the preferred hull material for small aluminium boats or larger yachts. Its high strength and good corrosion resistance make it an excellent match for yachting.
5086 has a tendency to undergo stress corrosion cracking and is not used much in aircraft construction as a result.
5086 has been used in vehicle armor, notably in the M113 Armored Personnel Carrier and M2 Bradley Infantry fighting vehicle.

6061-T6
T6 temper 6061 has an ultimate tensile strength of at least 42,000 psi (300 MPa) and yield strength of at least 35,000 psi (241 MPa).  More typical values are 45,000 psi (310 MPa) and 40,000 psi (275 MPa), respectively. In thicknesses of 0.250 inch (6.35 mm) or less, it has elongation of 8% or more; in thicker sections, it has elongation of 10%. T651 temper has similar mechanical properties. The typical value for thermal conductivity for 6061-T6 at 80°C is around 152 W/m K. A material data sheet defines the fatigue limit under cyclic load as 14,000 psi (100 MPa) for 500,000,000 completely reversed cycles using a standard RR Moore test machine and specimen. Note that aluminum does not exhibit a well defined “knee” on its S-n graph, so there is some debate as to how many cycles equates to “infinite life”. Also note the actual value of fatigue limit for an application can be dramatically affected by the conventional de-rating factors of loading, gradient, and surface finish.

180 degree aluminium elbow

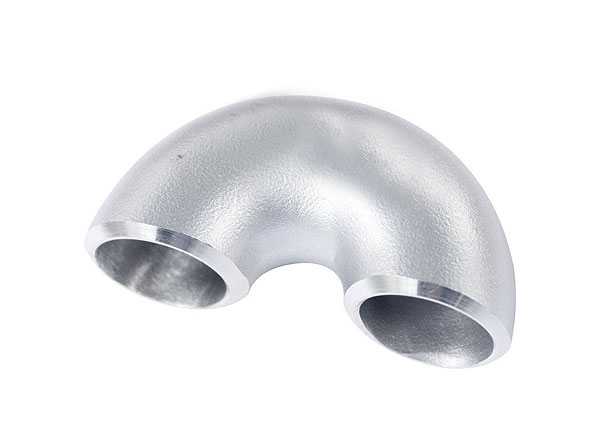

aluminium elbow

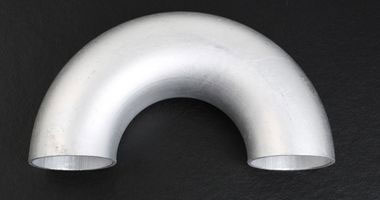

aluminum elbows

aluminum elbows

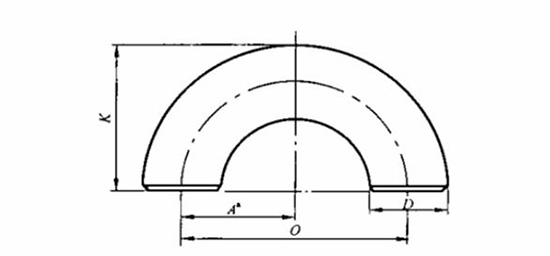

Nominal Dimension
DN
Bevel    D Center to Center       O
I Series
Bottom to Top  K
I Series Ⅱ Series I Series Ⅱ Series
25 33.7 32 51 41 41
32 42.4 38 64 52 51
40 48.3 15 76 62 61
50 60.3 57 102 81 79
65 73.0 76 127 100 102
80 88.9 89 132 121 121
90 101.6   178 140
100 114.3 108 203 159 156
125 141.3 133 254 197 194
150 168.3 159 305 237 232
200 219.1 219 406 313 313
250 273.0 373 508 391 391
300 323.9 325 610 467 467
350 355.6 377 711 533 544
400 406.4 426 813 610 619
450 457 480 914 686 697
500 508 530 4016 762 773
550 559   1118 838
600 610 630 1219 914 925
